Large sprinkler

Large sprinkler

Electric circular sprinkler

Release time: 2024-10-20 Visited: 37

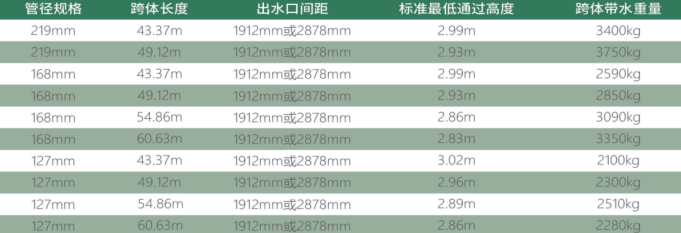

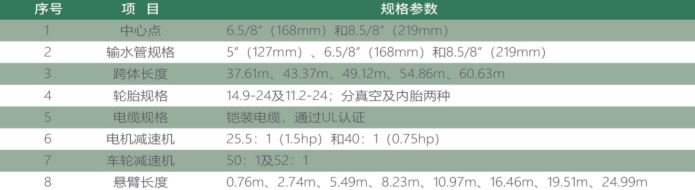

Equipment parameters:

屏幕截图 2024-04-15 142831.png

屏幕截图 2024-04-15 142847.png

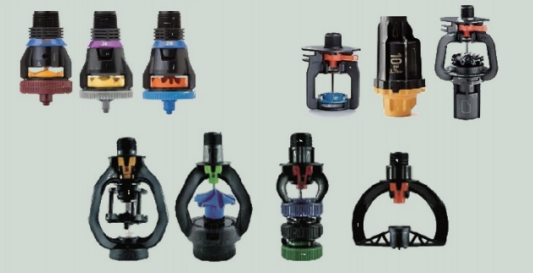

Supporting sprinkler head:

D3000 series, R3000 series, A3000 series, KOMET KPT series

LDN series, I-WOB series, optional.


Function selection:

Fan-shaped irrigation control function, tail gun spraying function, fixed-point shutdown function, electronic fence through function, rain protection function, lightning protection function. Remote control function.

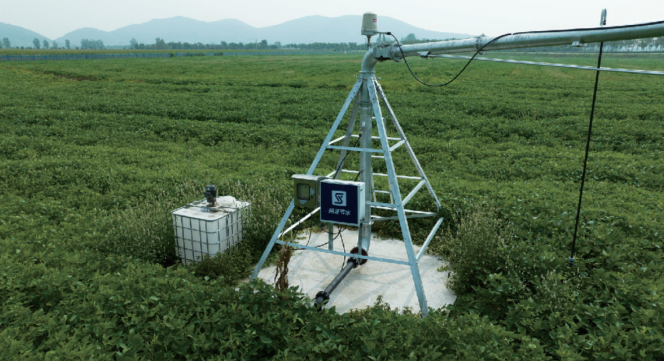

Central point:

屏幕截图 2024-04-15 144335.png

  • Main water pipe of 203 mm

  • Rotary sealing joint mechanism

  • Flexible connector

  • Supporting angle steel of  90*90*7 mm

  • Cross arm angle steel of 50*50*5 mm

  • Stainless steel threaded pipe

  • Wedge-shaped waterproof sealing joint

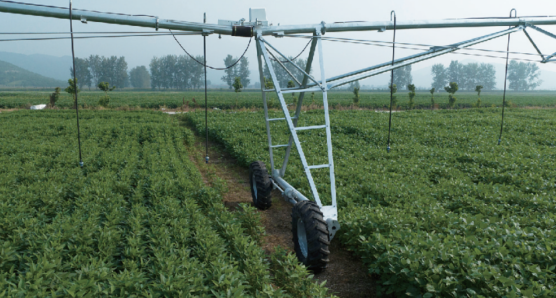

Manganese steel reinforcement:

屏幕截图 2024-04-15 144355.png

  • 1/2"5J span bolt

  • 1/2" three-point self-locking nut

  • Supporting angle steel of 50*50*4 mm

  • Tower angle steel of 75*75*7 mm

  • Hot dip zinc treatment of ≥80µm

  • Steel drive square shaft of 22*22  45#

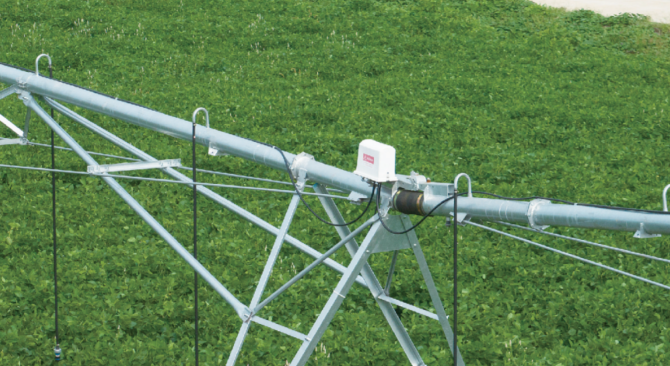

Cross-body connection

屏幕截图 2024-04-15 144344.png

  • Flexible connection of ball twisted structur

  • Imported high-pressure connecting rubber drum
